Multi-Phase Project: Phase
I-70 Fulton Bridge
Brayman was responsible for drilling and installing 16-each 97” diameter drilled shafts with depths to soil that ranged from three to 60 feet and rock sockets that were 90” in diameter to support the reconstructed Fulton Bridge on I-70 in Wheeling, WV.
location
Wheeling
,
West Virginia
ESTIMATED VALUE
$2 M
owner
WVDOH
Completion date
08/2020
general contractor
Swank Construction Company LLC
Market
Transportation
Multi-Phase Project: Phase

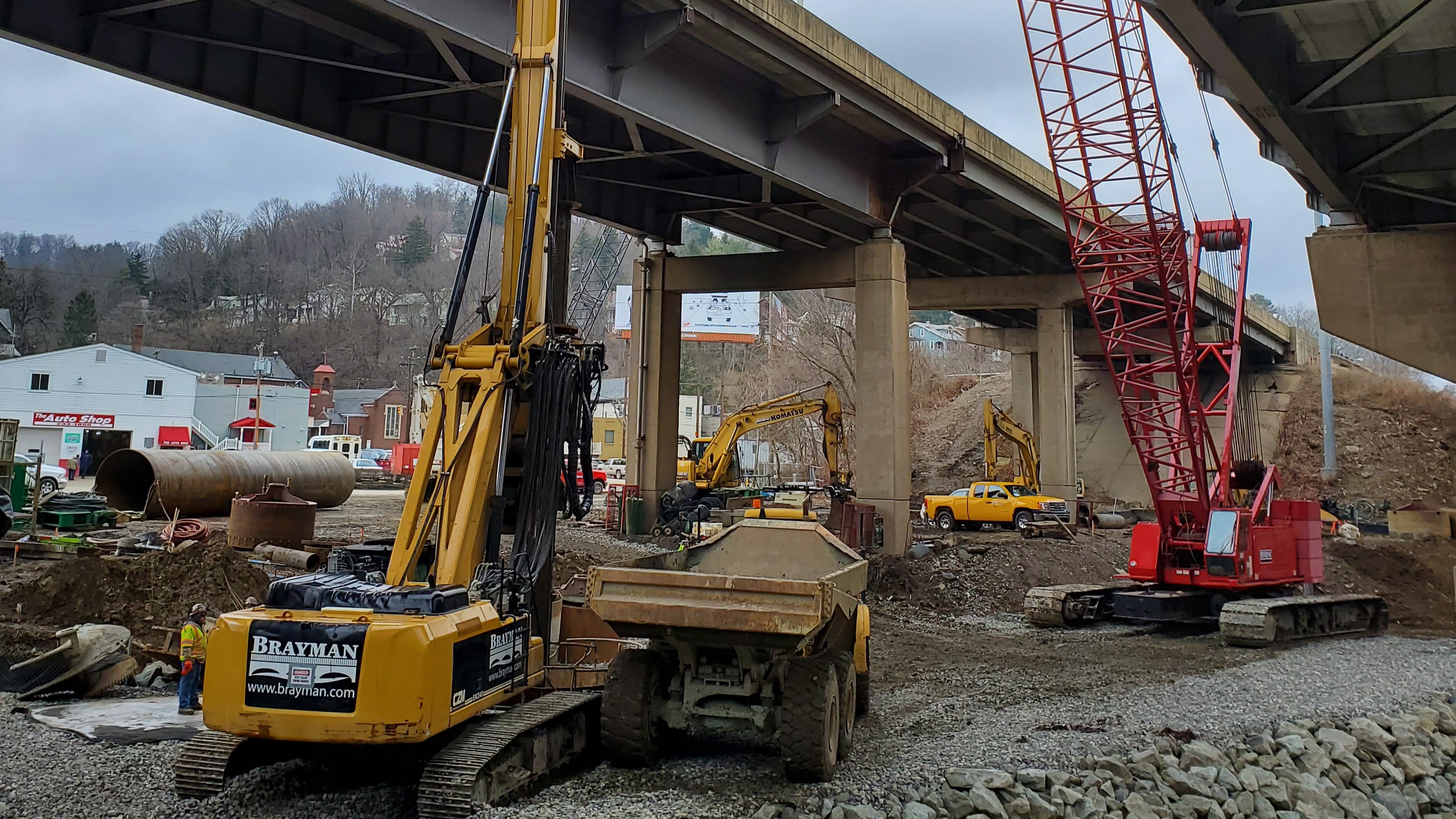

I-70 Fulton Bridge
Brayman was responsible for drilling and installing 16-each 97” diameter drilled shafts with depths to soil that ranged from three to 60 feet and rock sockets that were 90” in diameter to support the reconstructed Fulton Bridge on I-70 in Wheeling, WV. Brayman also installed nearly 700 LF of per-manent steel casing and approximately 1,400 CY of concrete.
The shafts were located at three pier structures. At the Pier 3 location, the shafts were in the center of Fulton Creek, and the Team had to drill from a small causeway. The location required additional spoils and water management to protect the creek.
Specialty Rebar Supply & Tie, a Division of Brayman affiliate company Brayman Precast, fabricated the cages and the cage rigging.
OUR PROJECTS
Related Projects
Multi-Phase Project
Chickamauga Lock Monolith M48 Anchors
Project consists of 60,000 CY of rock excavation, 65,000 CY common excavation, over 100,000 CY embankment material, 90,000 CY of mass concrete and over 1,150 high capacity dam anchors. It will also include a grout curtain and reconstruction of the left and right river banks.
Multi-Phase Project: Phase
1 & 2
Dover Dam
Post tension anchors, spillway access platforms, underwater anchors, increased dam height via post tensioned pre-cast panels, 2 mile access road, shoring, caissons, soil nail wall, this job had it all.
Multi-Phase Project: Phase
2A
Iron Mountain Boyers
Brayman’s scope of work included installation of 11-each large diameter shafts, up to 240-feet deep and 42-inch diameter, which will be used for various utilities.
Multi-Phase Project: Phase
5
Bluestone Dam
Project consists of 60,000 CY of rock excavation, 65,000 CY common excavation, over 100,000 CY embankment material, 90,000 CY of mass concrete and over 1,150 high capacity dam anchors. It will also include a grout curtain and reconstruction of the left and right river banks.
Multi-Phase Project: Phase

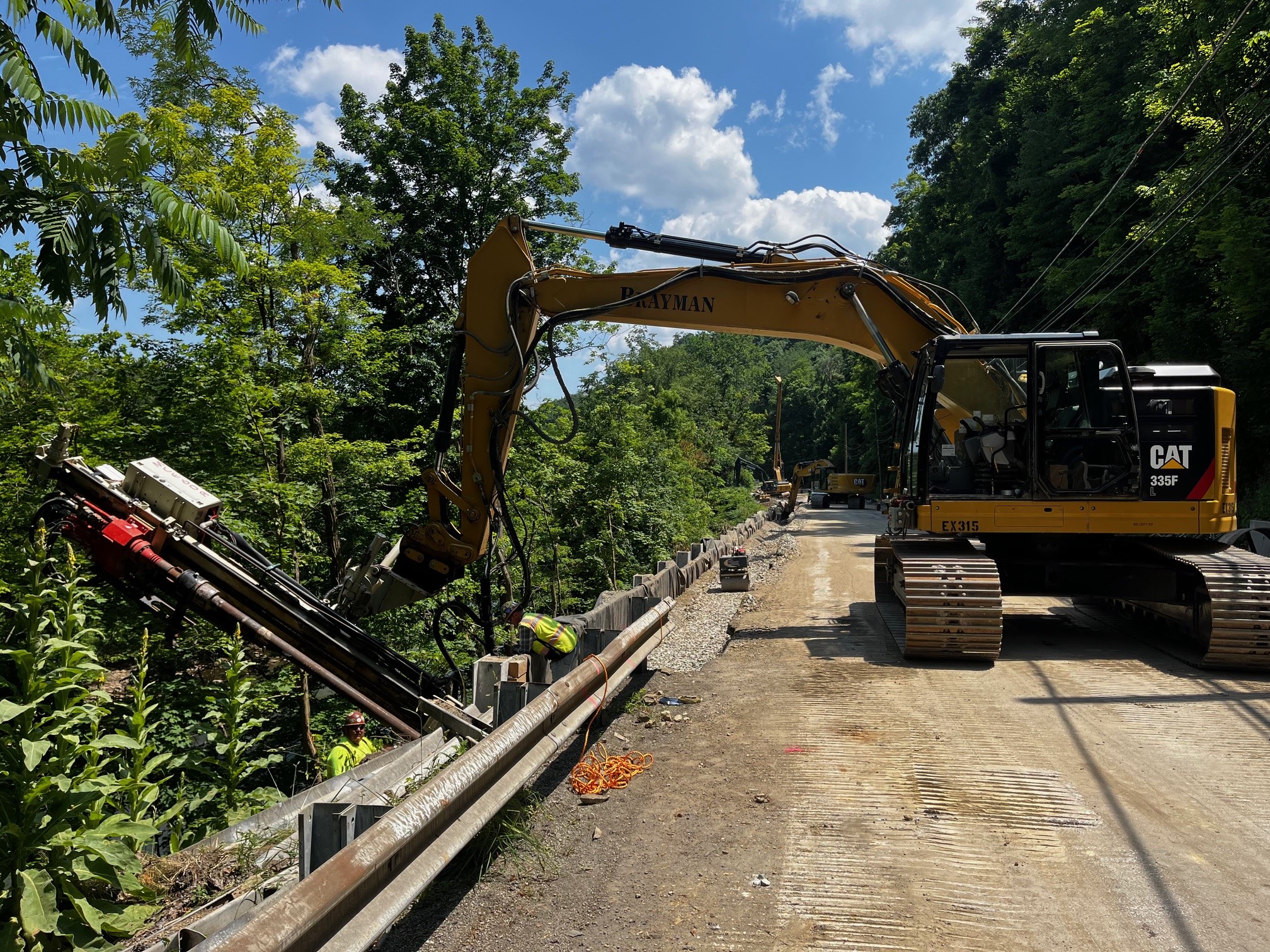

SR 403
