Multi-Phase Project: Phase
Loudoun Water Milestone Reservoir and Water Pump Station

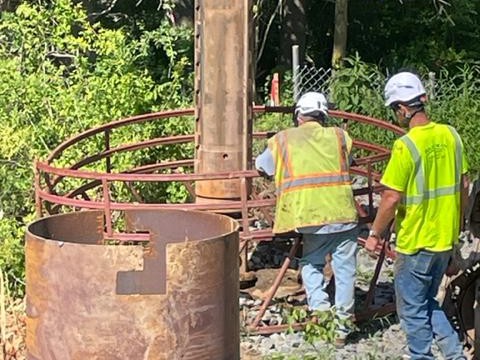

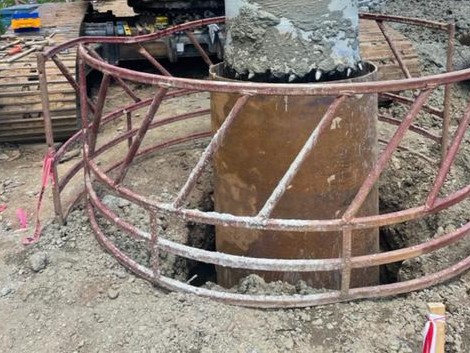

Brayman Construction Corporation was responsible for installing caisson shafts for a new bridge at Loudoun Water’s Milestone Reservoir and Water Pump Station.
location
Ashburn
,
Virginia
ESTIMATED VALUE
$145,000
owner
Loudoun Water
Completion date
12/2024
general contractor
Shirley Contracting Company
Market
Industrial
Multi-Phase Project: Phase
Loudoun Water Milestone Reservoir and Water Pump Station
Brayman Construction Corporation was responsible for installing caisson shafts for a new bridge at Loudoun Water’s Milestone Reservoir and Water Pump Station. Brayman installed four 42-inch shafts with permanent steel casings, including rebar cages and concrete. Drilling depths were approximately 12’ to diabase rock and 7’ rock sockets.
The bridge will provide access to Milestone Reservoir, currently under construction in a former stone quarry. Milestone Reservoir will eventually provide one billion gallons of raw water storage capacity for Loudoun Water.
